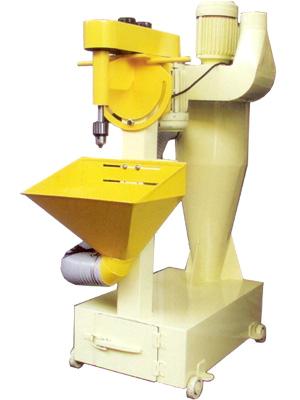

YK-500B
180° TILTING HI-SPEED SOLE WELT GRIND ROUGHEN M/C WITH DUST COLLECTORS
Application
- Thie machine is suitable for various rubber sole with welt such as tennis shoes, basket shoes etc., making grind roughen, furthermore, to increase the adhesive force between sole & vamp.
Characteristic
- This machine can be tilted left & right randomly, the max swiveling angle 180 which can be against multi-profile sole to develop its performance.
- The machine have dust collector and 3 steps var-speed forcustomers to select desired processing speed.
Dimension
1010 x 530 x 1380
Voltage
220V 1~:50/60Hz
Power Consumption
2HP
Air Pressure
7Kg/cm2
N.W/G.W
100Kg/130Kg
/
/
