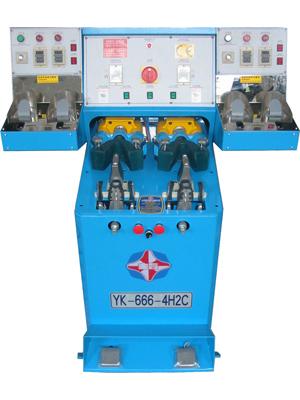

YK-666-4H2C
4 HEATING & 2 COOLING BACKPART MOULDING MACHINE
Application
- Pre-moulding of backpart.
- Re-shaping of backpart & top line.
Characteristic
- The temperature of both the inner and outer mould can be adjusted individually (depended on the material).
- Perfect effect & speed are obtained from cool mould after heating.
- After mouldina, the counter, upper and lining will be adhered & flatten to ensure no wrinkle & pleat happened.
- Fast lasting process, high productivity & lower cost will be obtained after moulding.
- Using reverse mould to re-shape the backpart,eliminate wrinkles,stretch of top line and waste of material.
- Shoes mould can be ordered arbitrarily and chanaed easily and Changed easily.
- Independent warming by hot air, and adjustment can be made according to different materials. The activation speed is fast And electric energy can be saved.
Dimension
1240 x 1490 x 1400
Voltage
220V 1~:50/60Hz
Power Consumption
3.8Kw
Air Pressure
5~6Kg/cm2
Catacity
1600-2400Pairs/8hrs
N.W/G.W
280Kg/380Kg
