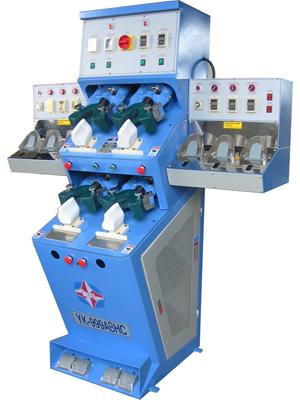

YK-999A-BHC
6 HOT BLOWERS & 4 COLD BACKPART MOULDING MACHINE
Application
- Suitable for aftfoot typesetting.
Characteristic
- The lining of the aftfoot after typesetting can be completely integrated with vamp and inside, so there is no worry about detachment and complete leveling of the lining. The quality of vamp has been improved and defective ratio has been decreased.
- With four cold and six hot modules, the production capacity and efficiency are high, and the production cost can be decreased.
- Independent warming by hot air, and adjustment can be made according to different materials. The activation speed is fast and electric energy can be saved.
- The mould is set according to the shoe’s shape of customers, so the most accurate effect of typesetting can be achieved.
- The machine platform adopts double-layer and inclined designing and complies with human factors engineering. It is convenient and simple for operation.
- Two sets of environment-protecting refrigeration system is uniquely designed, with the highest efficiency and fastest cooling Speed.
Dimension
1480 x 840 x 1850
Voltage
220V 1~:50/60Hz
Power Consumption
5.6Kw
Air Pressure
5~6Kg/cm2
Catacity
2400-4000Pairs/8hrs
N.W/G.W
310Kg/360Kg
