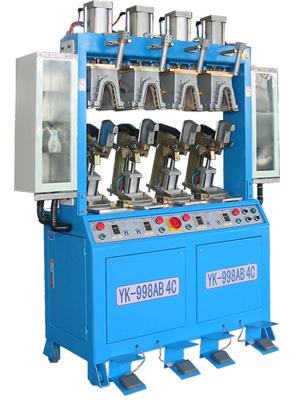

YK-998A-4C2F
Air-cell 4-cooler Aftfoot Typesetting Machine (together with last precooling machine)
Application
- Typesetting for aftfoot of sports shoes.
Characteristic
- Suitable for any materials, beter for thermoplastic material
- Two sets of environment-protecting refrigeration system and chill pressing machine. They are controlled independently with the highest cooling efficiency and fastest speed of cooling and typesetting.
- Air-cell for external mould, and the external mould need not be replaced when putting in internal mould.
- Projector lamp is used for setting location. The chill can be inclined to the operator for the convenience of replacing typesetter.
- There are precooling boxes on both sides. Standby shoe last can be precooled, then it can be used after the shoe last has been replaced.
Dimension
1580 x 620 x 1860
Voltage
220V 1~:50/60Hz
Power Consumption
4.5Kw
Air Pressure
5~6Kg/cm2
Catacity
2800-4000Pairs/8hrs
N.W/G.W
400Kg
