YK-998A-4C

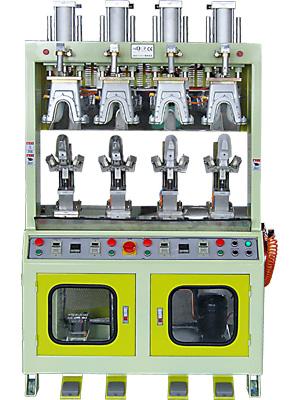

4 COOLING DALLONET STYLE BACKPART MOULDING MACHINE
Application
- Backpart moulding for shoe mass production.
Characteristic
- Suitable for all materials better for thermoplastic material.
- Air-cell for external mould, and the external mould need not be replaced when putting in internal mould.
- 3. Projector lamp is used for setting location. The chill can be inclined to the operator for the convenience of replacing typesetter. LED energy-saving lights use substantially extend the service life projection lamp.
- A full set of clip with stainless steel and more durable.
- High power cooling system for environment protect purpose it can get the best effect of moulding.(vaporizer temperature -20oC down after running 10 minutes)
- Machine in line with CE certification requirements, the use of more safe and convenient.
- Design of energy-saving air pressure.
- Machine rear equipped with a mirror stainless steel plate so that the operator can be observed when the upper rear shaping state, make the operation more convenient and more accurate shape.
- Machine is equipped with two sets of independent refrigeration systems, compressors two groups.
Dimension
1260 x 1490 x 1850
Voltage
220V 1~:50/60Hz
Power Consumption
1.6Kw
Air Pressure
5~6Kg/cm2
Catacity
2000-2800Pairs/8hrs
N.W/G.W
450Kg/550Kg
