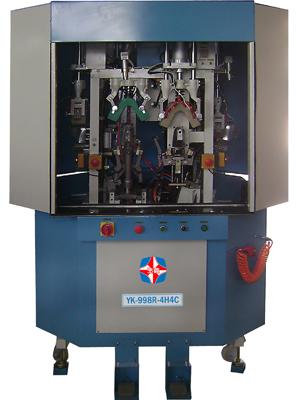

YK-998R-4H4C
REVOLVING STYLE 4 COOLING & HEATING BACKPART MOULDING MACHINE WITH FLANGING WIPERS
Application
- Backpart moulding for shoe mass production.
Characteristic
- Suitable for any shoe upper material.
- Two sets of cooling system separated from cold pressing equipment offer high coolingefficiency and speed.
- Cold mould slanting to operatoris convenient for moulding.
- Custom-made outer & inner mould offers the highest accuracy.
- Truing-up light device can let operator know accurately the position of the staton.(upper back position board device has same effect)
- Wipper is optional devicd of this model for upper margin flanging moulding.
Dimension
1700 x 1500 x 1950
Voltage
380V 50/60Hz
Power Consumption
2.54Kw
Air Pressure
5~6Kg/cm2
Catacity
1200-2000Pairs/8hrs
N.W/G.W
1000Kg
