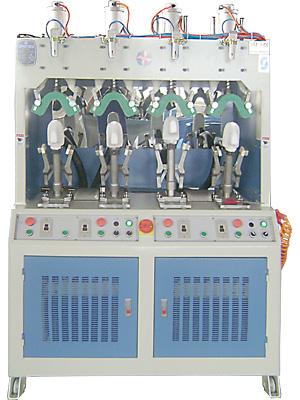

YK-998W-4C
4 COLD BACKPART MOULDING MACHINE WITH FLANGING WIPERS
Application
- Backpart and heel margin flanging moulding.
- General backpart moulded.
Characteristic
- Suitable for all materials better for thermoplastic material.
- High output, it can be operated in the sewing process for the smooth and preparation of the moulding line.
- The upper pre-moulding make the toe & heel seat lasting machine work smoothly to save material & labor cost and increase output.
- Projector lamp is used for setting location. The chill can be inclined to the operator for the convenience of replacing typesetter. LED energy-saving lights use substantially extend the service life projection lamp.
- Custom-made outer & inner mould offers the highest accuracy.
- Wipers were deviced with selective switch, and can be turn off if not required.
- Adjustable clippers help to cause the fastening of the shoe uppers and last mould to be 100% accuracy.
- Two sets of cooling system separated from cold pressing equipment offer high cooling efficiency and speed.
Dimension
1260 x 760 x 1910
Voltage
220V 1~:50/60Hz
Power Consumption
1.2Kw
Air Pressure
5~6Kg/cm2
Catacity
2800-4000Pairs/8hrs
N.W/G.W
480Kg/580Kg
