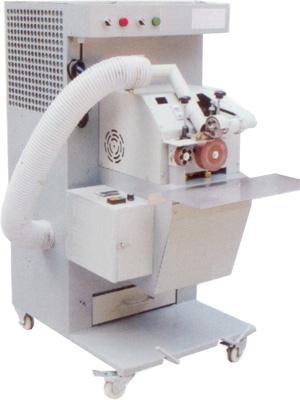

YK-326B
VAMP DEGE GRINDING MACHINE WITH SOUNDLESS COLLECT DUST(AUTO DUST-CLEANUP DEVICE)
Application
- The machine is suitable for vamp edge roughen grinding for genuine leather & synthetic leather. Especially, which can be coupled with the dust collector to clean the processing dirty, ensure the clean air in works healthy of operator, advance the working efficiency.
Characteristic
- Built-in patented atuo dust-cleanup device, moreover keep the suction all the time.
- The operator whom just set the vamp edge by necessary width between the rubber roller & sanding wheel, thus, the roughen grinding processing will be processed automatically.
- Simple of operating and the grinding which can be adjusted from 5mm~35mm freely. Furthermore, the grinding speed can be adjusted steplessly.
- This machine and dust-collecting to integrative design, does not take the space light and move easy.
Dimension
1130 x 780 x 1350
Voltage
220V 1~:50/60Hz
Power Consumption
1 1/2HP + 1/2HP
Air Pressure
7Kg/cm2
N.W/G.W
200Kg/260Kg
/
/
