YK-794

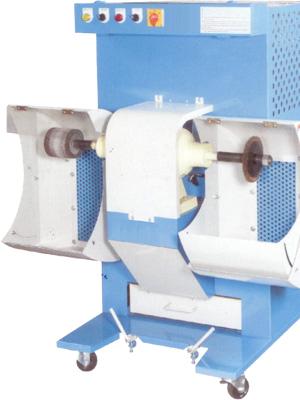

GRIND ROUGHEN M/C WITH NOISELLESS DUST COLLECTOR(AUTO DUST-CLEANUP DEVICE)
Application
- The machine is suitable for the sole after lasting to paste the sole to grind roughen.
Characteristic
- Built-in patented atuo dust-cleanup device, moreover keep the suction all the time.
- This machine interior be equipped with noiseless dust collector, low noise, compact size & powerful of dust collecting force for which assured the healthy of working staff & neat air, advance working efficiency.
- The steel-wire wheel can be replaced grinding wheel, multi-function in one, during operating, for which just put sole at the grinding wheel or steel-wire wheel, thus, the unnecessary paint leather grind roughen, simple of operating, high efficiency.
- The motor is built in the machine frame with belt transmission. It is allows for speed change and reversible running.
Dimension
1010 x 720 x 1320
Voltage
220V 1~:50/60Hz
Power Consumption
3HP
Air Pressure
5~6Kg/cm2
N.W/G.W
264Kg/305Kg
/
/
