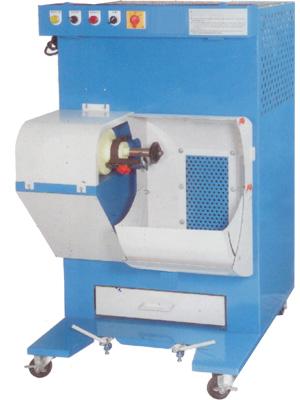

YK-791
EDGE LINE GRINDING M/C WITH NOISELLESS DUST[2 STEPS VARI-SPEED](AUTO DUST-CLEANUP DEVICE)
](images/product/YK-791.jpg)
Application
- The machine is special for genuine leather vamp or synthetic leather vamp etc., for pasting with sole after lasting to grind the pasting line.
Characteristic
- Built-in patented atuo dust-cleanup device, moreover keep the suction all the time.
- The machine has being with grind roughen & paint remoing two functions, during operating for which just put sole along the copying mouling moving, thus, the 5mm~20mm width line will be happened, furthermore, those operated with moel YK-792 or YK-793 which cna be made sole grind roughen, simple of operating & high efficiency.
- This machine interior be equipped with noiseless dust collector, low noise, compact size & powerful of dust collecting force for which assured the healthy of working staff & neat air, advance working efficiency.
Dimension
1010 x 720 x 1320
Voltage
220V 1~:50/60Hz
Power Consumption
3HP
Air Pressure
5~6Kg/cm2
N.W/G.W
215Kg/260Kg
/
/
