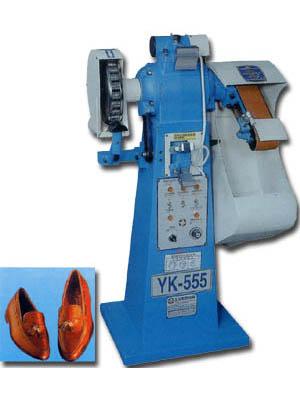

YK-555
SOLE RUBBING TRIMMING MACNINE
Application
- Grind roughly, solid lasting, massage backpart, quarter, upper, toe, top line, removing from angle condition.
Characteristic
- It contains five parts: (a) Grinder: grind the relief upper under the insole, non-use of knife. (b) High speed wheelt: press the upper of insole to affix with last avoiding deformation. (c) Massage stickt three different shape, removing the angle condition of upper, backpart, toe, quarter, top line & sewing line.
- Heater attached with massage stick makes the upper more perfect.
- Easy operation, less possibility of reject.
- High power, easy maintenance and utility.
Dimension
720 x 620 x 1300
Voltage
220V 1~:50/60Hz
Power Consumption
0.36Kw
Air Pressure
5~6Kg/cm2
Catacity
2000-2800Pairs/8hrs
N.W/G.W
212Kg/260Kg
