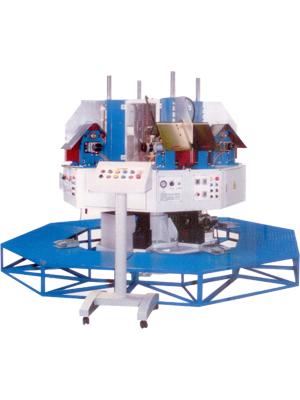

YK-219TR
Automatic Rotary Upper Molding Machine
Application
- The moulding of shoe upper.
Characteristic
- Design with rotary, only one operator accomplish of capacity on four sets simple machine.
- Every station can work on discrete, not to intervenient together, capacity not to delay while maintain of machine.
- Every station can design on discrete with customer s demand. (1)molding mode: hot modal, cold modal, hot-cold modal. (2)molding plate: either one point(instep) curvature with R41 or R63.5 or two point. plate thickness with 20mm or 15mm or 10mm.(special dimension can order by customer). (3)actuate system: hydraulic or compressor.
- Electric system by Programmable Logic Controller (PLC), easy to operate.
Dimension
2000 x 2000 x 2200
Voltage
220V 1~:50/60Hz
Power Consumption
4.5HP
Air Pressure
5~6Kg/cm2
Catacity
1440Pairs/8hrs
N.W/G.W
3500Kg
