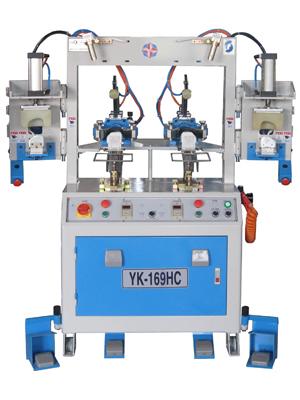

YK-169-HC
MULTI-FUNCTION TRANSVERSE TYPE COLD AND HOT TOE CAP MOULDING SHOES MACHINE(APPLY LASTED SHOES)
Application
- Pre-moulding of toe cap.
Characteristic
- Be applicable to any toe puff material, thermoplastic material is particularly good.
- The special outside mould add-press forming design makes upper molding more close.
- The upper locking plate design makes upper placing more simple and correct, promote the simplicity and accuracy of machine operation.
- The slip-lasted pre-moulding, makes the middle sole stitch sewing accurate calibrating, toe shape not deflecting.
- The center line of shoes would be accurate through pre-moulding, It makes the slip-lasting or lasting work easier, can raise capacity and reduce loss.
- Special shoes-last fix way, makes the mould changing work easier, cooling effect better.
Dimension
800 x 660 x 1680
Voltage
220V 1~:50/60Hz
Power Consumption
2.7Kw
Air Pressure
5~6Kg/cm2
Catacity
800-1200Pairs/8hrs
N.W/G.W
160Kg/240Kg
