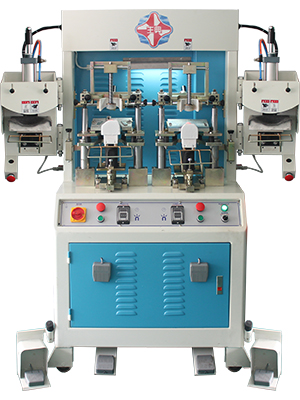

YK-268K-HC
HEATING & COOLING TOE UPPER FORMMING MACHINE
Application
- TOE UPPER Pre-shaped(suitable for stitch down california and kind of shoe).
Characteristic
- Applicable for any toe-puff material,especially suitable for thermoplastic material.
- Apply pressure on outer mould to allow a shaping resuit of shoe upper.
- Shoe upper positioning board device to allow more accurate and convenient placing of shoe upper. The operation is thus made easier more accurate.
- After shoe last is pre-shaped, insole sewing can be adgsted more accurately so that shoe upper doesn t get off the center.
- High accuracy of the center shoe line to allow insertion of last and lasting work more easily so that there is less waste and production volume can be increased.
- Special shoe last mould positing method to make moulds xhanging easier and more convenient.
- Mould is heated with vapor equipment to make shoe upper more elastic and shining during the heating process.
Dimension
1500 x 630 x 1700
Voltage
220V 1~:50/60Hz
Power Consumption
3.9Kw
Air Pressure
5~6Kg/cm2
Catacity
1400-2000Pairs/8hrs
N.W/G.W
400Kg/500Kg
